Inverter Welders

GYSPOT INVERTER PTI.G

GYS as a world leading manufacturer has used its experience to create the spot welder of the future - the GYSPOT INVERTER PTI-G. The on-board intelligence guarantees full automation to increase bodyshop efficiency.

The Genius G-clamp has pneumatic over-opening, easy arm positioning without adjustment and a motorised overhanging arm to provide a wide working area. This is the most advanced Inverter Spot Welder for the modern bodyshop.

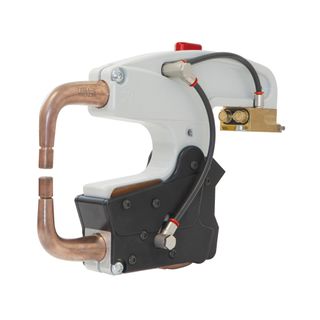

INNOVATIVE CLAMP WITH INTEGRATED TRANSFORMER
* Light weight - 11.3 kg with the G1 arm.
* 80 mm of automatic opening capacity (20 mm at rest)
* Manual over-opening of the arm for access to difficult areas (200 mm release).
* The double action feature ensures a quick arm removal without the use of tools.
* Automatic cooling connection.
* Remote controlled clamp (opening, welding, adjustment validation).
* Lockable Gyrosocope integrated into the clamp body.
* High duty cycle (18 points/min).
* Optional single-point gun (option).

SMART WELDING
* AUTO Mode: the machine automatically recognizes - steel type, sheet-metal thickness, panel bond presence and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
* Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
* Easy transfer of saved reports to PC.

HIGH PERFORMANCE
* Welding current: 14 500 A.
* Clamping force: 550 daN with 8 bar air pressure.
* Liquid cooling of the entire transformer, rectifier, electrodes and caps.



Comes Complete
024878 GYS Inverter PTI.G 400V 6M

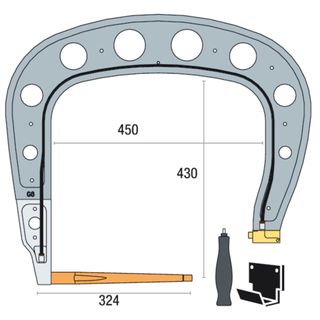

022898 Set of 3 G Arms Insulated: G2 + G3 + G4
067226 Single Sided Welding and Dent Puller Kit
050853 Cover

Downloads

Product Name Price Quantity
Code: GYSPTIG
GYS PTI.G INVERTER 14500A 550 DAN
Price on Request
-
Make an Enquiry
